Life Easy Supply Other Products 2.4G Electric Guitar Wireless Transmission/power Amplifier System Also Good For Bass, Drum, Etc

The CUVAVE wireless transmission/amplifier system is a kit specially developed for wireless connection of electric musical instruments (electric guitar, bass, electronic drum, etc.). It has the advantages of low noise, low delay, high sound quality resolution (48KHz), and long effective transmission distance.

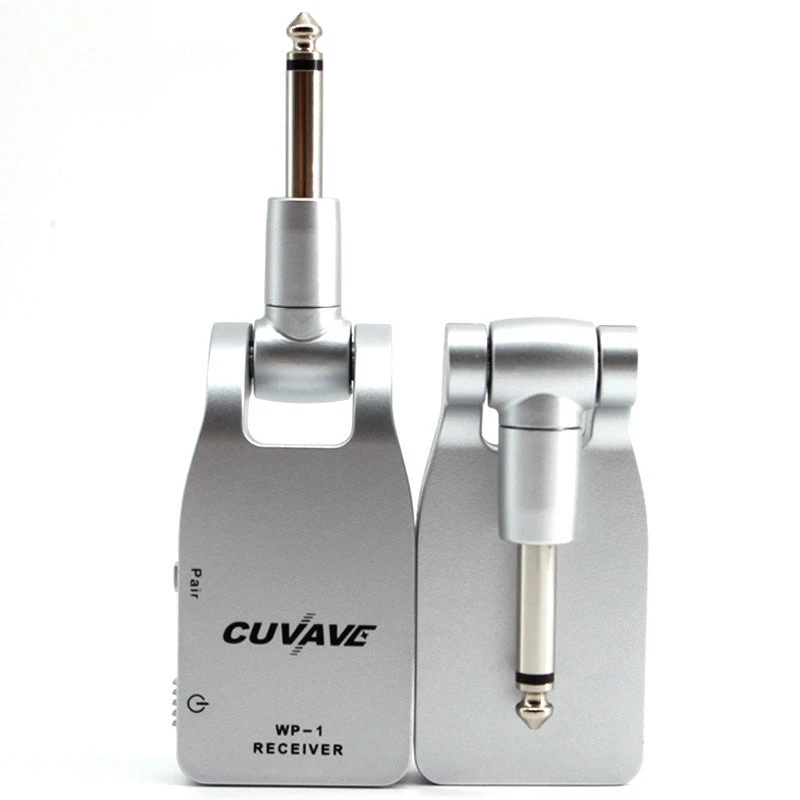

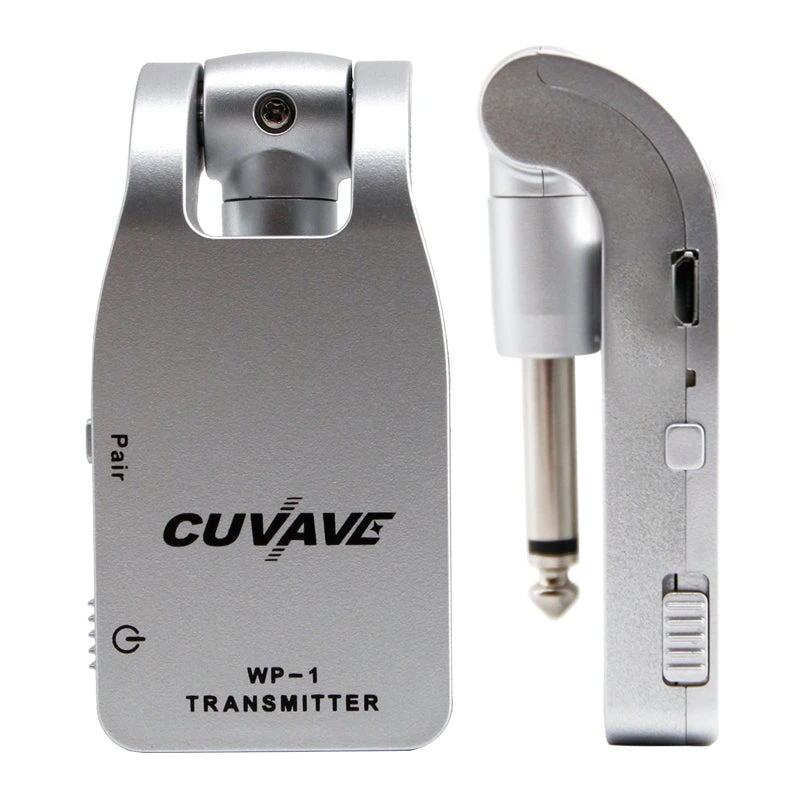

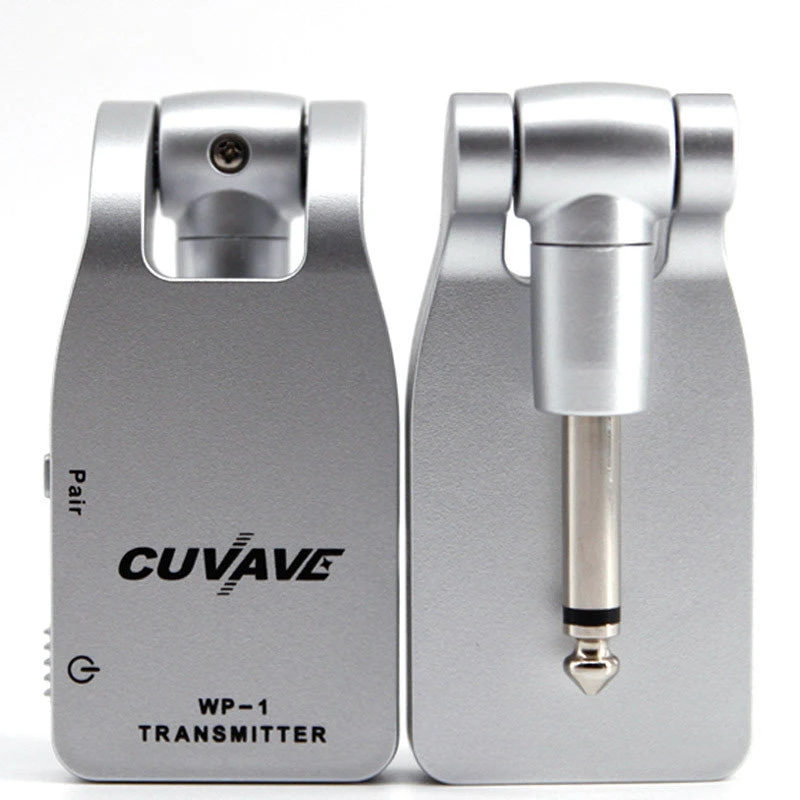

This kit includes a transmitter (connects to guitar) and a receiver (connects to the louder speaker), pair them together, you are ready to play wirelessly.

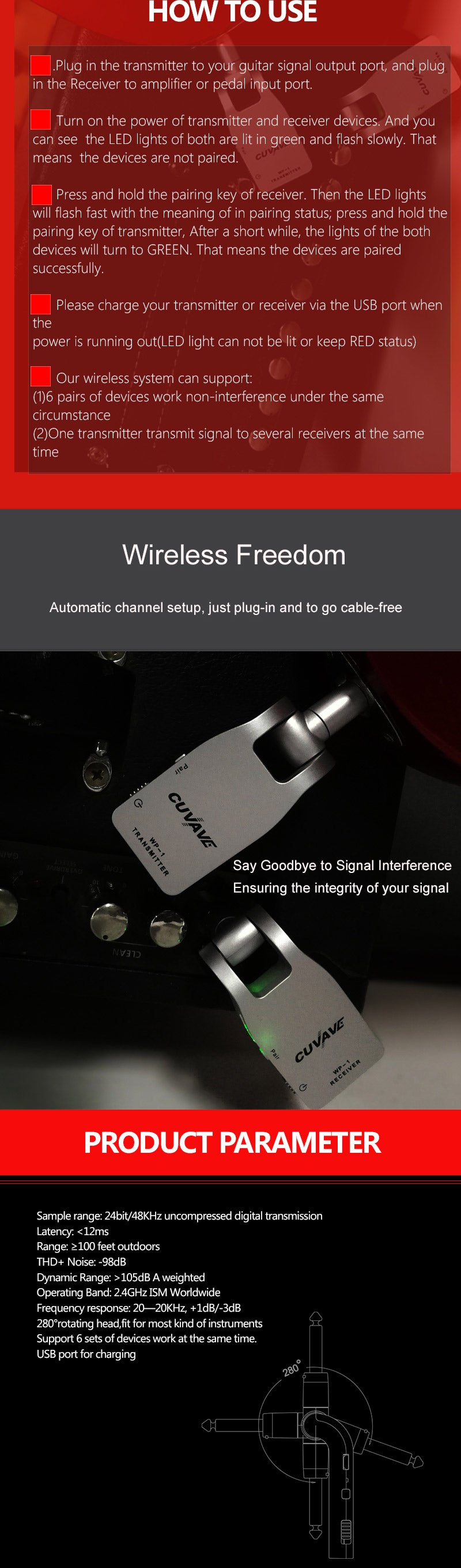

How To Use:

1. Plugin the transmitter to your guitar signal output port, and plug in the receiver to your electric music instruments input port.
2. Turn on the power of transmitter and receiver devices. And you can see the LED lights of both are lit in green and flash slowly. That means the devices are not paired.
3. Press and hold the pairing key of the receiver. Then the LED lights will flash fast with the meaning of in pairing status; press and hold the pairing key of the transmitter, After a short while, the lights of both devices will turn to GREEN, Which means the devices are paired successfully.
4. Please charge your transmitter or receiver via the USB port when the power is running out (LED light can not be lit or keep RED status).



Key Features

• Wireless transmitter & receiver set designed for electronic music instruments like guitar, bass, etc.
• 2.4G uncompressed wireless signal transmission, low noise and latency, the effective range is about 30 meters.
• Supports 6 sets of devices working at the same time, one-to-one and no-interference; and one transmitter can transmit the signal to several receivers at the same time also.
• Built-in rechargeable lithium battery, long working hours, and comes with a USB cable for convenient recharging.

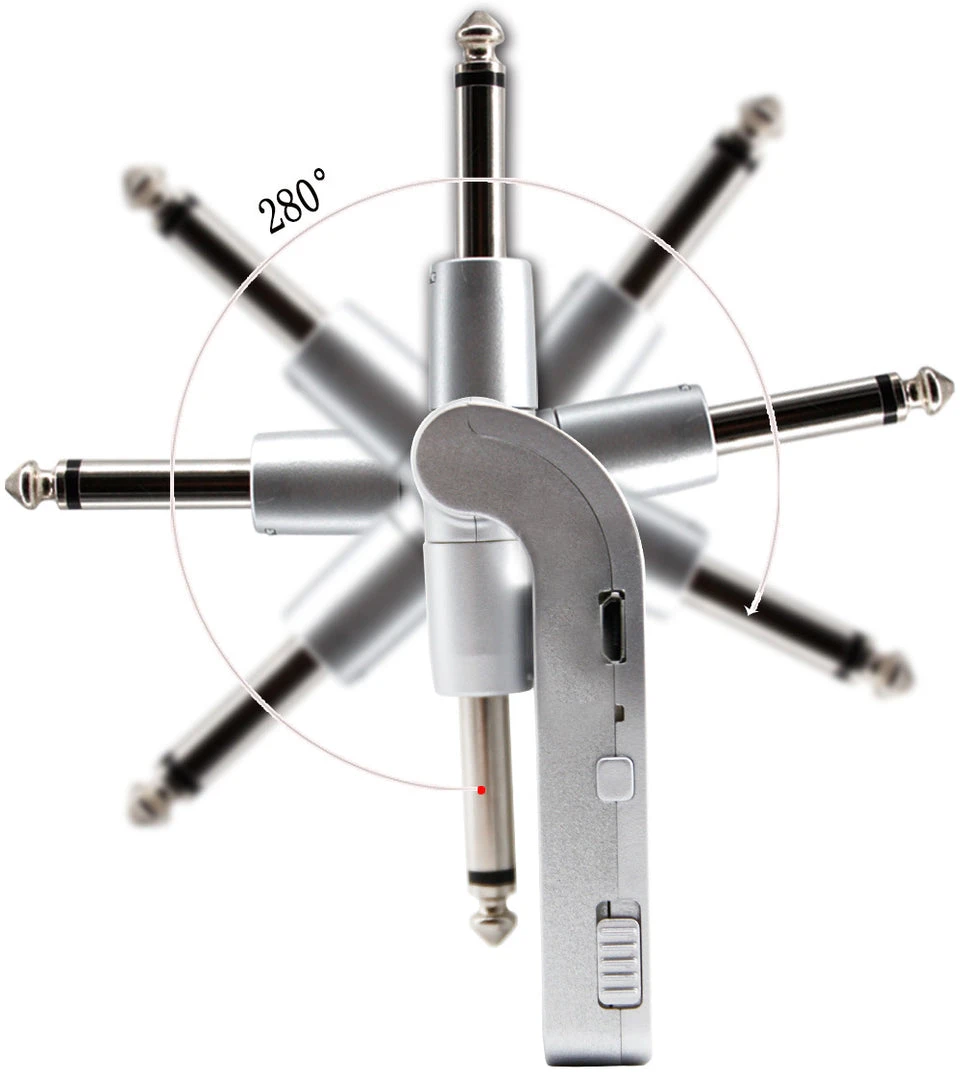

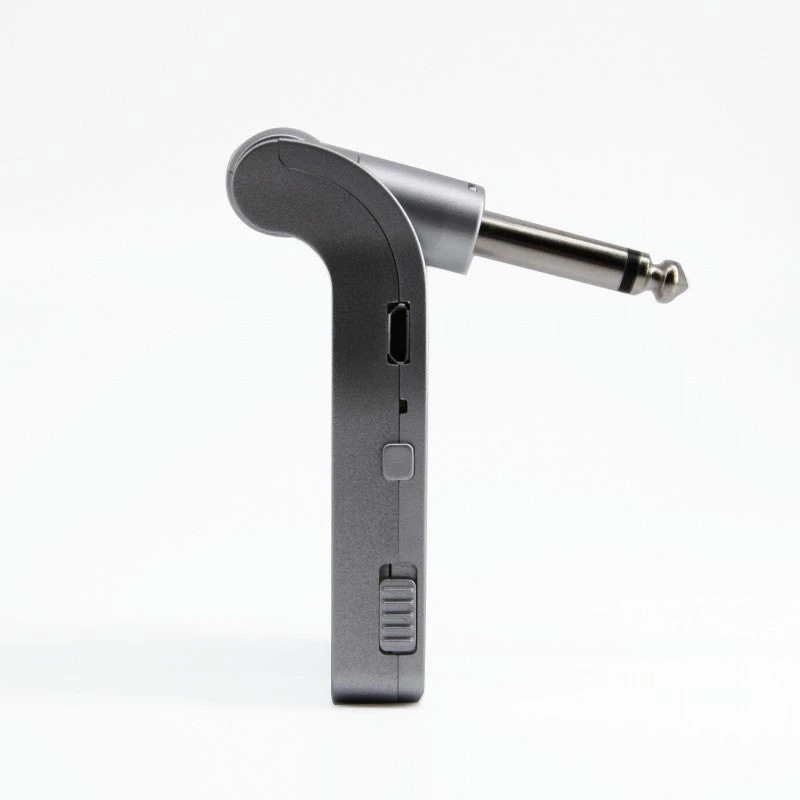

• 280° rotatable 1/4″ plug, available for instruments with input jack in different positions.

Specification

• Sample range: 24bit/48KHz uncompressed digital transmission
• Latency: <12ms
• Range: ≥100 feet outdoors
• THD+ Noise: -98dB
• Dynamic Range: >105dB A weighted
• Operating Band: 2.4GHz ISM Worldwide
• Frequency response: 20—20KHz, +1dB/-3dB
• 280°rotating head, fit for most kind of instruments
• Support 6 sets of devices work at the same time.
• USB port for charging

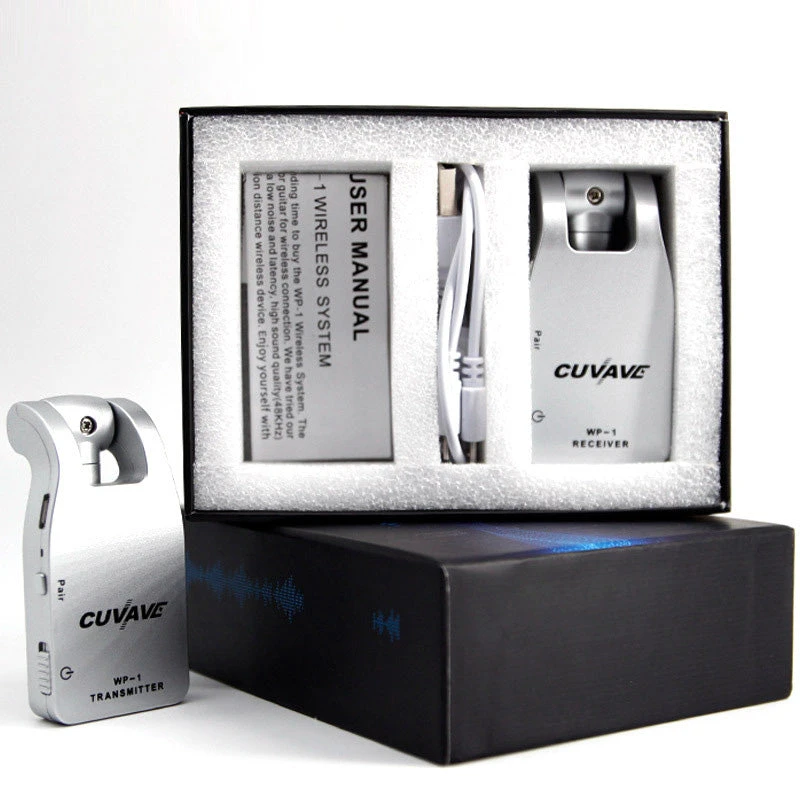

Package Includes:

• 1 x Transmitter
• 1 x Receiver
• 1 x USB Cable
• 1 x User Manual
